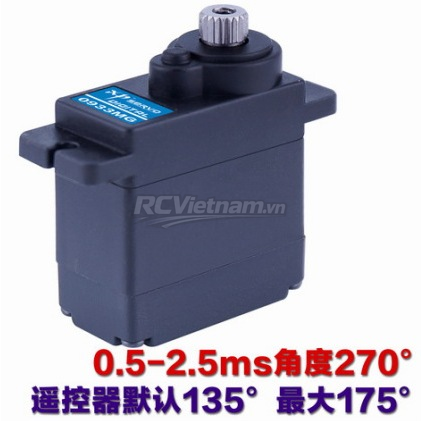

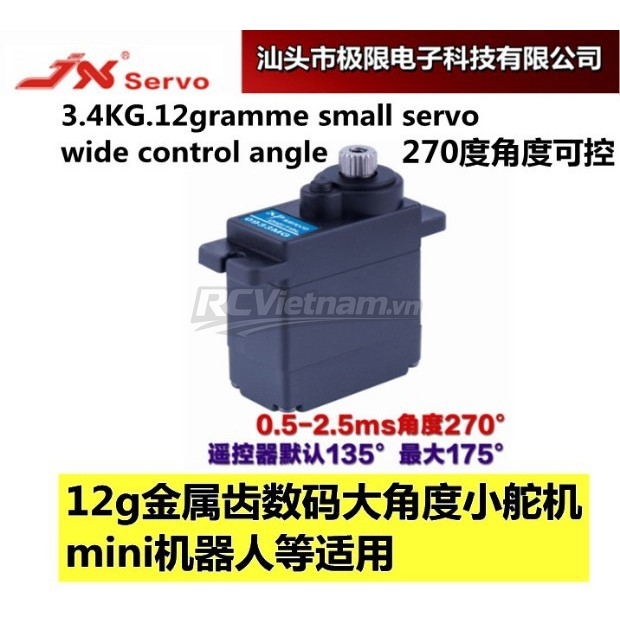

Digital Servo jx 0933-12g bánh răng full kim loại kỹ thuật số góc lớn

Thông số kỹ thuật:
135 degrees/cars, ships and aircrafts controlled by remote control
175 degrees/PWM 850-2150us servo control panel control
270 degrees/PWM 500-2500us servo control panel control

Dead band: 2μs 1520μs / 330hz
Voltage range:4.8V-6.0V
Pulse Width:500μs-2500μs270°
Remote:175°
Motor: High quality core motor
Operating Speed (4.8V/6.0V):0.12/0.10sec 60°
Stall Torque (4.8V/6.0V): 2.5/3.4 kg.cm

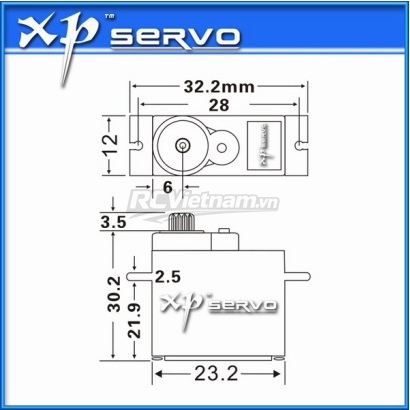

Dimensions: 23.2X12X30.2mm
Weight: 12 g
Connector Wire Length: JR 180 mm
